MySQL Query Rewritten plugin now supporting DELETE / INSERT / UPDATE / REPLACE

Posted byhercules7sakthiPosted inMySQL

MySQL has the inbuilt query rewritten plugin for rewrite the SQL statements which received by the server before execute them .

  • Before MySQL 8.0.12 , the query rewritten plugin only supports for SELECT’s
  • From MySQL 8.0.12 , the query rewritten plugin will supports for INSERT , REPLACE, UPDATE, DELETE , SELECT .

One of our customer had the performance issue with the DELETE statements for particular table . The issue was happened after the new code deployment . In this blog, I am going to explain the implementation of the MySQL query rewrite plugin and how we overcome the issue using the MySQL query rewritten plugin .

MySQL Query rewritten plugin Implementation :

MySQL provides two SQL files for the installation / Uninstallation purpose . The files will be located under the directory “lc_messages_dir”

  • The file install_rewriter.sql for the installation purpose .
  • The file uninstall_rewriter.sql for the uninstallation purpose .

Once you loaded the file “install_rewriter.sql” , it will create a separate database / table / procedure for the query rewritten rules management .

database : query_rewrite

table : rewrite_rules

procedure : flush_rewrite_rules

Table structure :

  • The SQL rewritten rules needs to be configured on the table “rewrite_rules” .
  • Based on the query rules the server will rewrite the query .
  • All the columns have their own purpose .

Example :

Here is the simple example with query rewritten plugin .

pattern : SELECT ?

replacement : SELECT ? + 1

Hope this make sense !!

Note : It is always need to call the procedure “flush_rewrite_rules” . whenever you modified the rules table .

My problem statement with DELETE :

  • Last Friday One of our client had the new code deployment .
  • With the new code they mistakenly mentioned the UPPER function on one of the DELETE statement , actually which is not required .
  • So, the query was not able to use the INDEX as the function prevents the INDEX usage .
  • The table had around 30M records
  • Unfortunately modifying the code without UPPER case is not possible that time .

Fix : We have provided the fix by using the MySQL query rewritten plugin by adding the rules without the UPPER function .

It is restricted to share the production data , so I have reproduced the same issue at my local environment with less data .

Experiment at my local :

Created the table “jc_rewritten” and inserted some records .

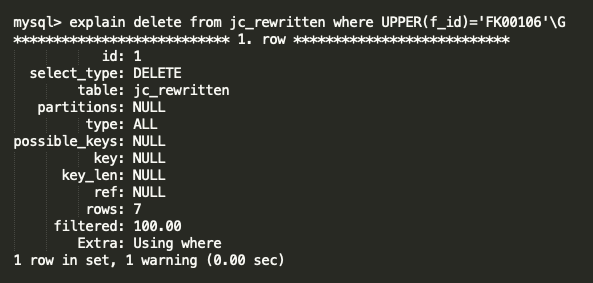

DELETE with UPPER function ,

Here you can see the UPPER function is blocking the index for column “f_id” and the query doing FTS ( Full Table Scan ) . It is very painful for 30M table .

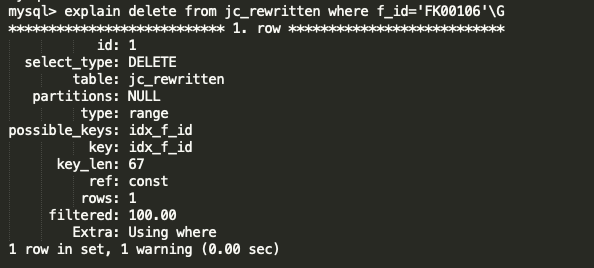

DELETE without UPPER function ,

Without UPPER function, the query is using the optimal index and does direct look up . It is very very fast .

Both the query will affect the same data ,

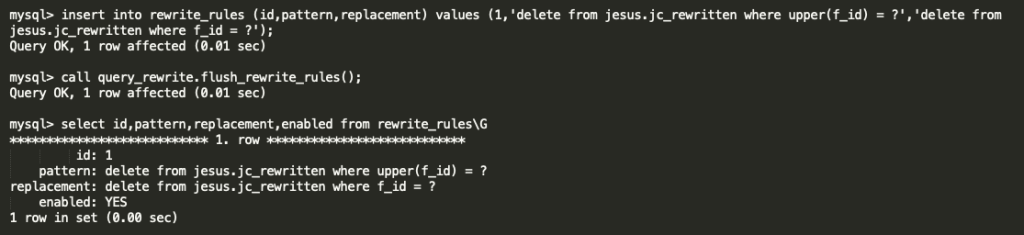

So, we have made the Query rewritten rule like below ,

just we are removing the UPPER function as it is not required .

After activated the query rule the SQL is running fine as expected . And, our performance issue was fixed .

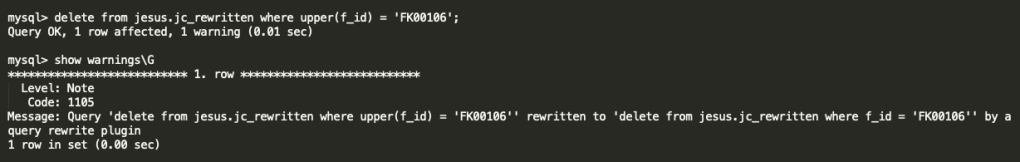

You can see the warning message as how the server changed the query . Below is the logs from GENERAL query log ,

Conclusion :

Some of the database tools ( i.e. ProxySQL ) have more features on this Query rewritten topic . MySQL inbuilt query rewritten plugin recently ( from MySQL 8.0.12 ) supporting for DELETE’s , UPDATE’s , INSERT’s . And, it helps a lot to solve our production issue . Expecting more features on upcoming versions . Special Thanks to MySQL community Team !! I will be come up with my next blog as much as possible .

Thanks !!
